Friday, October 31, 2014

CLSC des Faubourgs - Montreal

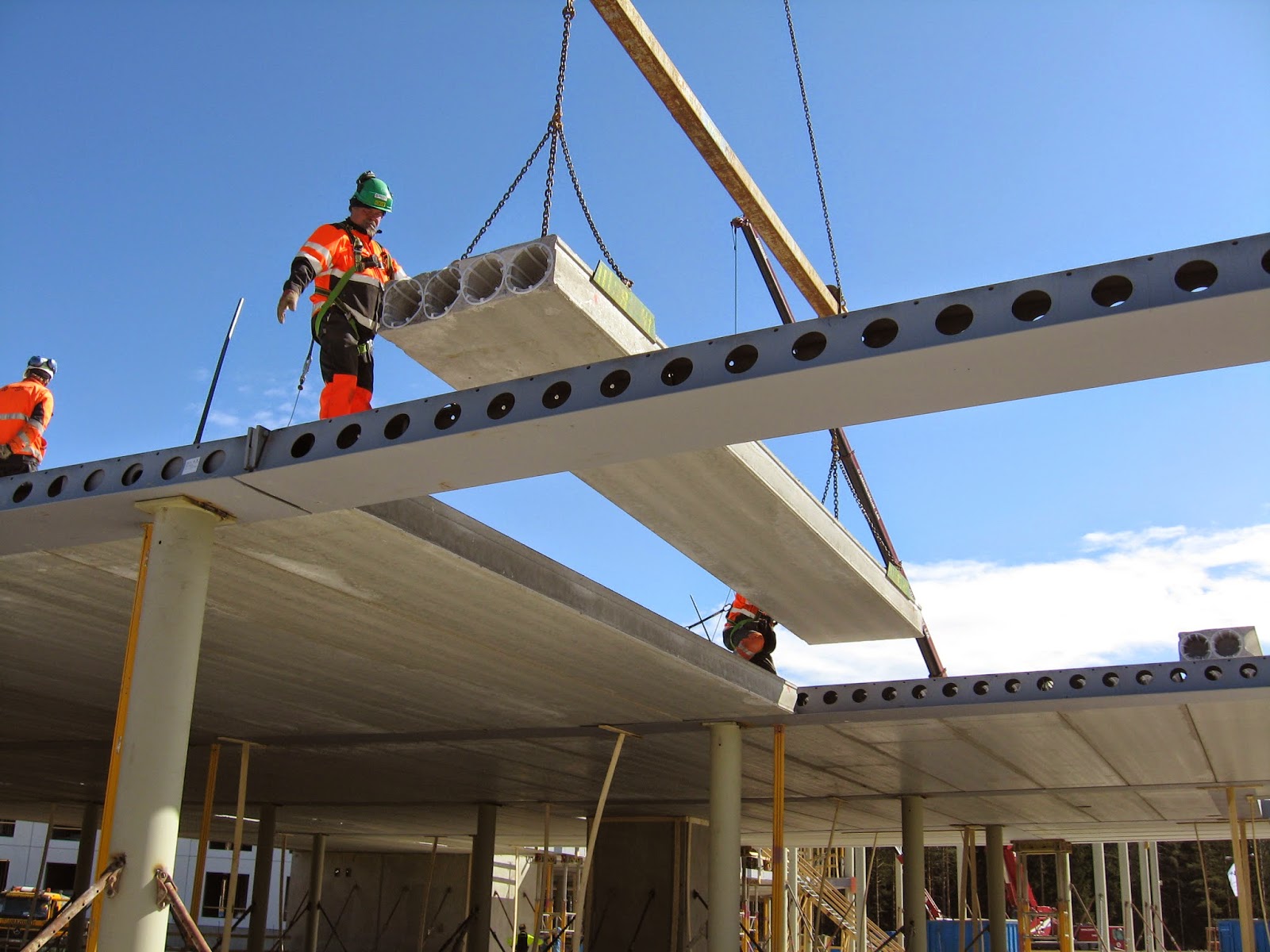

As the first post on this blog, I would like to share a picture that was taken 2 weeks ago on a job site in Montreal. This project uses a combination of steel structure and hollow core slabs. Through the use of Deltabeam (the gray beam in the picture), the builder was able to locally reduce the floor thickness to 200 mm + topping: the same thickness as the hollow core slab.
On the upper levels of this building, the slim floor was needed specifically for mechanical systems integration. At the parking level, Deltabeam was used throughout the floor structure to increase clearance and reduce the use of fire resistant material.

Tuesday, October 28, 2014

High Rise Deltabeam Project with The Tricar Group

Reaching a whopping 30 storeys, the Renaissance II condominium building in London, Ontario is among the tallest precast buildings in North-America. Using Deltabeams throughout its 26 residential floors, the skyscraper has become a beacon of performance and reliability for the Deltabeam solution.

Renaissance  ii  is  a  high-end  condominium project with 156 condo units,  each  overlooking  beautiful sights of “Forest City”. Developed and built  by the Tricar Group, the behemoth is seen as part of the precast revolution currently taking place in southwestern Ontario as an increasing  number  of  developers  choose to  build  with  faster  and  more  economical building material. Tricar is now working on a third project using the Deltabeam solution in Guelph, Ontario.
Innovators at HGS Ltd.
internationally renowned  hGs ltd. were chosen for the structural design of the building. Medhat Ghabrial, Vice President of Ontario’s most prominent precast structural engineering firm, supported the Deltabeam solution which enabled a uniform floor thickness of 10-3/8’’ (26.4 cm). Dr. Ghabrial understood the reduction of floor depth and worked hand in hand with Peikko on the high magnitude project. The project as a whole consists of two twin 30 storey towers with a parking tower in-between. The first skyscraper was done in 2003 with a cast-in-place frame and patented flooring system. Though there was no major problem using this system, it was labor extensive and created a low quality slab, not to mention the average floor thickness which toped a total 18 inches (46 cm) per floor. The second skyscraper is being finished summer 2012, using Deltabeam and hollow core on most levels. This incredible solution creates a uniform 10-3/8’’ (26.4 cm) thick flat slab, enabling a 19 feet (5.5 m) increase of floor to ceiling space on a total of 26 floors. Further comparing both towers, numbers speak for themselves:

An Added Value Solution
The  Tricar  Group’s  Chris  Leigh  saw  the potential of using the Deltabeam combined with hollow core slabs, especially to avoid any headroom issues and increase of floor to ceiling height by 2 feet (60 cm) over a total of  5  storeys.  “We  had  a  precast  concrete solution  that  would  greatly  increase  our speed  of  construction  and  reduce  our workforce onsite, but we needed a thinner total floor thickness” says leigh. “Keeping the  same  floor  depth  while  having  a  22  foot (6.7 m) opening of unobstructed space initially seemed impossible”. That’s exactly what the Deltabeam made possible: six wide and clear openings per floor, giving upcoming residents  huge  flexibility  to  arrange  their condos. This  project  is  a  good  example  of increased  rOi  thanks  to  the Deltabeam, as Tricar was able  to sell several floors  of high-end  condominiums  at  a  higher  price thanks to their tall ceilings (11 feet, 3.4 m).  Olimpio  Couto,  Precast  Manager  for  the renaissance  ii,  says  working  with  Peikko was  a  charm.  “Peikko  always  supplied  the Deltabeams ahead of time. The beams were easy  to  install  onto  our  parallel  concrete walls  and  involved  very  little  shoring compared  to  your  typical  cast-in-place structure.’’ explains Couto. ‘’The shore free space was especially good for other trades to come in early during the project, trades such  as  electricians,  plumbers  etc.’’  The Tricar Group is based out of london, ON, and specializes  in  the  development  of  luxury condominiums for sale and apartments for rent  in  southwestern  Ontario. Tricar acts both as a property development and property management company.

Key Partners in the Project
The  precaster  chosen  for  the  renaissance ii  is  stubbe’s  Precast.  Throughout  the project,  they  were  recognized  for  their professionalism and expertise with hollow-core slabs, only equal to their impeccable support  during  project  installation  and beyond. located in a small town less than an hour away from london, stubbes supplied a turnkey solution including other precast elements such as precast cladding.

Deltabeam Gains Pupularity in Canada
The  Deltabeam  solution  is  becoming increasingly popular in Canada. The Tricar Group  alone  is  working  on  yet  another  multi-storey  project  using  Deltabeams,  which will total three Deltabeam  projects for the real estate company in less than two years: renaissance ii, renaissance Parkade and  riverhouse  Condominiums.  Further more,  two  major  multi-storey  projects  are  well  on  their  way  in  Winnipeg,  Manitoba: Grand  Airport  hotel  and  Centerpoint residential-hotel-commercial-parkade project. Finally, several residential projects are  also  moving  forward  throughout  the Quebec  province:  le  Mesnil  and  Quartier urbain 395.

Friday, October 17, 2014

Welcome to Peikko Canada's blog!

This blog was created to share our passion about multi-storey construction. As a world pioneer in precast and cast-in-place construction technologies, we thought it would be interesting to have a platform to communicate freely with professionals of the industry. We hope you will enjoy this blog and will enrich it by adding your comments.
